BLUE STAR INVERTER SPLIT AC | F SERIES | 1.5 TON | 5 STAR IE518FNU
MRP
₹40,599.00
Key Features
Payment Methods:
Description
|
Item Details |
|
|---|---|
|
Brand |
|
|
Model |
|
|
Capacity |
|
|
Star Rating |
|
|
Colour |
|
|
Item Dimensions WxDxH |
|
|
Item Weight |
|
|
Features Condenser Type |
|
|
Manufacturer |
|
|
Warranty |
|
Technical Specification |
|
|---|---|
|
Model Codes |
|
|
Nominal Capacity (Tr) |
|
|
Air Conditioner Type |
|
|
Star Rating – As Per BEE |
|
|
(Rated) Voltage / Frequency / Phase |
|
|
Cooling Capacity(Min~Max) (Watt) |
|
|
Cooling Capacity (Min~Max)BTU/Hr |
|
|
Cooling Rated Power Input (Min~Max)(Watt) |
|
|
ISEER |
|
|
Electricity Consumed In 1600 Hours. (Units/Year) |
|
|
Nominal Current (Cooling in Amps)/Running Current |
|
|
Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) |
|
|
Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) |
|
|
Moisture Removal (Litres/Hour) |
|
|
Compressor Type |
|
|
Compressor Warranty |
|
|
Eco Friendly Refrigerant |
|
|
Refrigerant Quantity (gms) |
|
|
Ambient Temp Range (Cooling)°C |
|
|

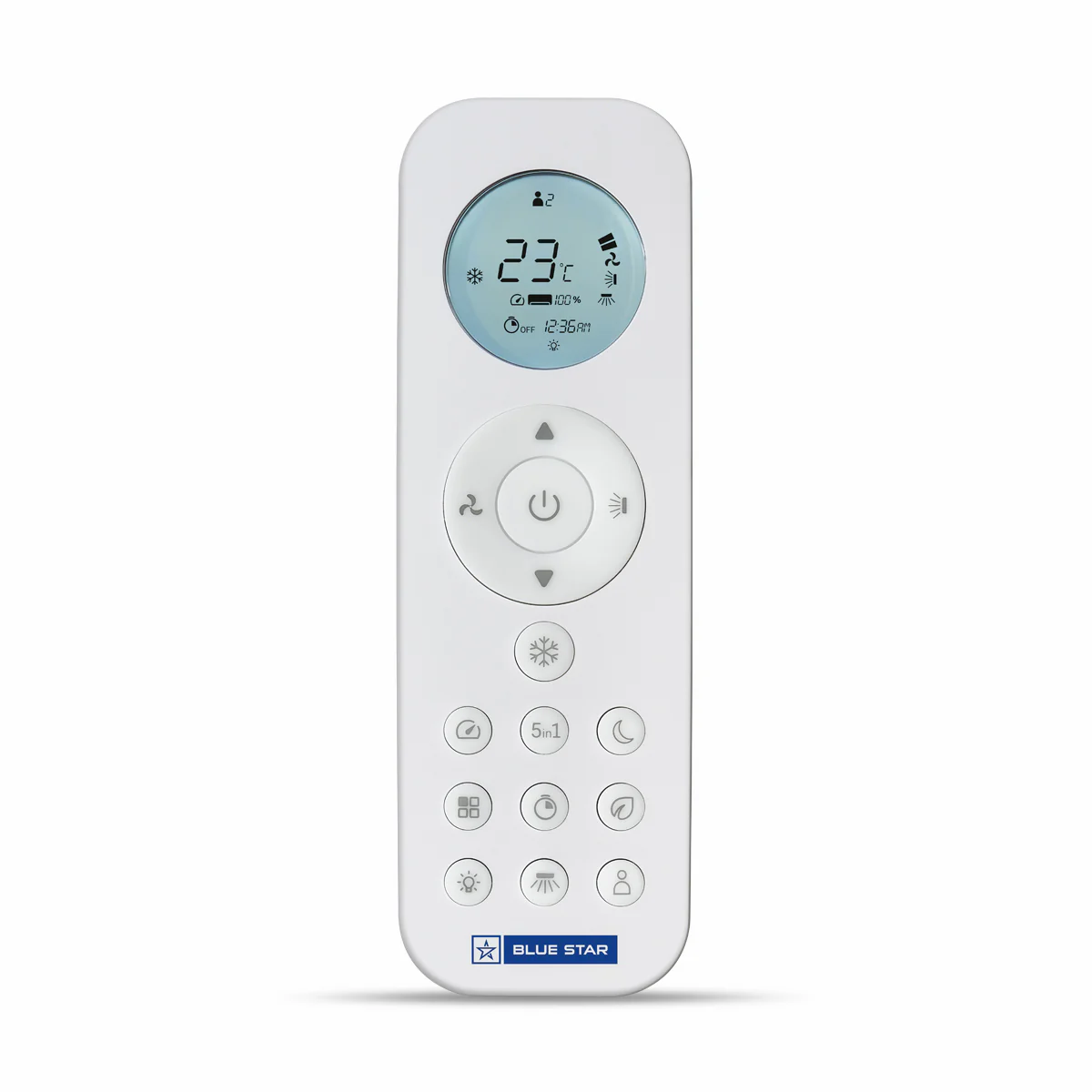

Remote |
|
|
IDU Net Dimension (W X H X D ) mm |
|
|
IDU Gross Dimension (W X H X D ) mm |
|
|
Input Power Supply |
|
|
Net Weight IDU (in Kg) |
|
|
Gross Weight IDU (in Kg) |
|
|
ODU Gross Dimension (W X H X D ) mm |
|
|
Net Weight ODU (in Kg) |
|
|
Gross Weigth ODU (in Kg) |
|
|
Noise Level Outdoor In dB(A) |
|
|
Power Supply to ODU Source(Core/Gauge) sqmm |
|
|
Power Supply to IDU Source(Core/Gauge) sqmm |
|
|
Cable from ODU to IDU(Communication Cable) m |
|
|
Suction Tube Size Outer Diameter Inch ( mm) |
|
|
Liquid Tube Size Outer Diameter Inch ( mm) |
|
|
Max Piping Capability Total (metre) |
|
|
Max Piping Capability Vertical (metre) |
|
|
Refrigerant Additional Charge Beyond 5M (g/m) |
Key Features
-
- Turbo Cool-Pre-set mode to instantly cool the room during extreme summers.
- 5-in-1 Convertible Cooling-Unique 5-in-1 cooling mode to run your AC at 5 different capacities as per the desired comfort. It comes in combination of 2 buttons in the remote
- PM2.5 Filter-This AC comes with PM2.5 Filter + High density dust filter. This Filter captures tiny dust particulate matters & large dust
- 4-Way Swing-Here, the Louvers can disperse air horizontally and vertically, making it easier to adjust the AC’s airflow more accurately.
- Energy Saver-The Eco mode helps save on your electricity bills, while giving you comfortable cooling experience.
- DigiQ Hepta Sensors-Blue Star’s ACs are designed with 7 intelligent digital sensors that with its advanced microcontroller offer precise cooling even in extreme summer, optimise cooling in load variation and protect critical electronic components whilst in operation.
- Comfort Sleep-Intelligently adjusts the AC’s operation providing the right cooling comfort and ensuring comfortable sleep.
- 100% Copper-Blue Star AC’s condenser coil, evaporator coil, and connecting tubes are made of 100% copper, thereby ensuring reliable cooling performance and enhanced durability.
- Acoustic Jacket around Compressor-A specially designed acoustic jacket that eliminates noise and vibrations, making AC operation quieter.
- Stabiliser-free operation-Wide voltage range design ensures protection against unpredictable surges or fluctuations in voltage thus safeguarding the AC.
- Nano BluProtect* Technology with Anti Corrosive Blue Fins for Protection-This AC comes with Special Nano BluProtect* Technology coating on IDU coils in hairpin bend side. Anti-Corrosive Blue Fins protects the condenser and evaporator coils from corrosion and leakage due to harsh climate, rainwater, salty air, and humidity. Enhance the efficiency and long life of the AC.
Item Details
Brand BLUE STAR Model IE518FNU Capacity 1.5 Ton Star Rating 5 Star Colour White Item Dimensions WxDxH 1000 x 230 x 295 mm (IDU) / 780 x 281 x 557mm (ODU) Item Weight 9.4Kg (IDU) /24 Kg (ODU) Features Condenser Type 100% Copper Manufacturer BLUE STAR LTD. Warranty 1 Years on Product, 4 Year on PCB,Life Time on Inverter Compressor.
Technical Specifications
Product Title IE518FNU- Inverter Split AC 1.5 Tr 5 Star Nominal Cooling Capacity (Tonnage) 1.5 Star Rating 5 star Cooling Capacity (Watt)(Min~Max) 5000 (2543 ~ 5354) (Rated) Voltage/ Frequency/ Phase 230 V / 50Hz / Single ISEER 5.1 Address of Manufacturer BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 Country of Origin India Air Conditioner Technology Inverter Cooling Capacity (BTU/hr) 17060 Rated Cooling Capacity (50% Load) (Watt) 2500 Cooling Capacity (BTU/hr) (Min~Max) 17060 Cooling Power Input (50% Load) (Watt) 453 Nominal Current (Cooling) (Amps) 625/530/465/435 Noise Level Indoor (dB) (High/Medium/Low) 50/43/41/40 Moisture Removal (Litres/Hour) 1.3 Compressor Type Inverter Rotary Acoustic Jacket on Compressor yes Refrigerant Quantity (kg) 700 Ambient Temp (Cooling) (degree C) 52 Remote LCD Remote with Display Night Glow Function on Remote Buttons yes Net IDU Dimension (mm) 1000 x 230 x 295 (W x D x H) Input Power Supply Indoor Unit Net Weight IDU (kg) 9.4 Net ODU Dimensions (Width x Depth x Height) (mm) 780 x 281 x 557 Net Weight ODU (kg) 24 Noise Level Outdoor (dB) 57 Gross IDU Weight (kg) 11.2 Gross ODU Weight (kg) 29.9 Suction Tube Size Outer Diameter Inch (mm) 1/2″ (12.7mm) Liquid Tube Size Outer Diameter Inch (mm) 1/4″ (6.35mm) Refrigerant Additional Charge Beyond 4M (g/m) 15 Power Supply to ODU Source (Core/Gauge) 4C * 1.5 sqmm Power Supply to IDU Source (Core/Gauge) 3C * 1.5 sqmm Remote Battery Type AAA Features Refrigerant R32 Features Condenser Type 100% Copper Included Components 1 each of Indoor Unit, Outdoor Unit, Copper tube (3 m), Inter Connecting wire (3.5 m), Remote, User Manual
