BLUE STAR HEAVY DUTY FIXED SPEED AC | A SERIES | 2.2 TON | 2 STAR FA226ACUHD

Key Features

• • Wide Coverage Area-Wide Operating Capacity upto 2.2 Tr
  • Powerful Airthrow up to 55 Ft.-With a powerful air throw of 55 ft, you can relax comfortably with uniform cooling across all parts of your room.
  • 49 Inch Large IDU-This AC comes with a 49 inch wide IDU which ensures maximum cooling under extreme ambient conditions.
  • High Cooling Performance-Designed to deliver powerful cooling during extreme summers with minimum derating.
  • Turbo Cool-Pre-set mode to instantly cool the room during extreme summers
  • High Energy Efficient Rotary Compressor-The compressor is specially designed to deliver maximum cooling while using low power and helps you save on your power bills.
  • iFeel-Ensure desired comfort around you, with a sensor, in-built in the remote.
  • Nano BluProtect Technology-Special Nano BluProtect coating applied on copper tubes provides additional protection from corrosion and leakage due to dirt, salty air and industrial pollution, ensuring efficient cooling performance and longer durability.
  • Anti-Corrosive Gold & Blue Fins for Protection-Protects the coils from corrosion and leakage due to harsh climate, rainwater, salty air, and humidity. Enhance the efficiency and long life of the AC.


    Item Details

    Brand	BLUE STAR
    Model	FA226ACUHD- Fixed Speed Split AC 2.2 Tr 2 Star
    Capacity	2.2 Ton
    Star Rating	2 Star
    Colour	White
    Item Dimensions WxDxH	1259 x 282 x 362  (IDU) / 968 x 367 x 689 mm (ODU)
    Item Weight	21.2Kg (IDU) / 48.5 Kg (ODU)
    Manufacturer	BLUE STAR LTD.
    Warranty	1 Years on Product,  5 Years on  Compressor.



    ---

    Technical Specifications
    Product Title	FA226ACUHD- Fixed Speed Split AC 2.2 Tr 2 Star
    Star Rating	2 star
    Cooling Capacity (Watt)(Min~Max)	7400
    (Rated) Voltage/ Frequency/ Phase	230 V / 50Hz / Single
    ISEER	3.57
    Address of Manufacturer	BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020
    Country of Origin	India
    Air Conditioner Technology	Fixed Speed
    Cooling Capacity (BTU/hr)	25234
    Cooling Rated Power Input (Watt)	2075
    Cooling Capacity (BTU/hr) (Min~Max)	25234
    Electricity Consumed in 1600 Hours (Units/Year)	1606.27
    Nominal Current (Cooling) (Amps)	9.2
    Air Flow Volume (Wet CFM) (High/Medium/Low)	955/898/785/633
    Noise Level Indoor (dB) (High/Medium/Low)	61/59/56/53
    Moisture Removal (Litres/Hour)	1.6
    Compressor Type	Rotary
    Refrigerant Quantity (kg)	1.43
    Ambient Temp (Cooling) (degree C)	56

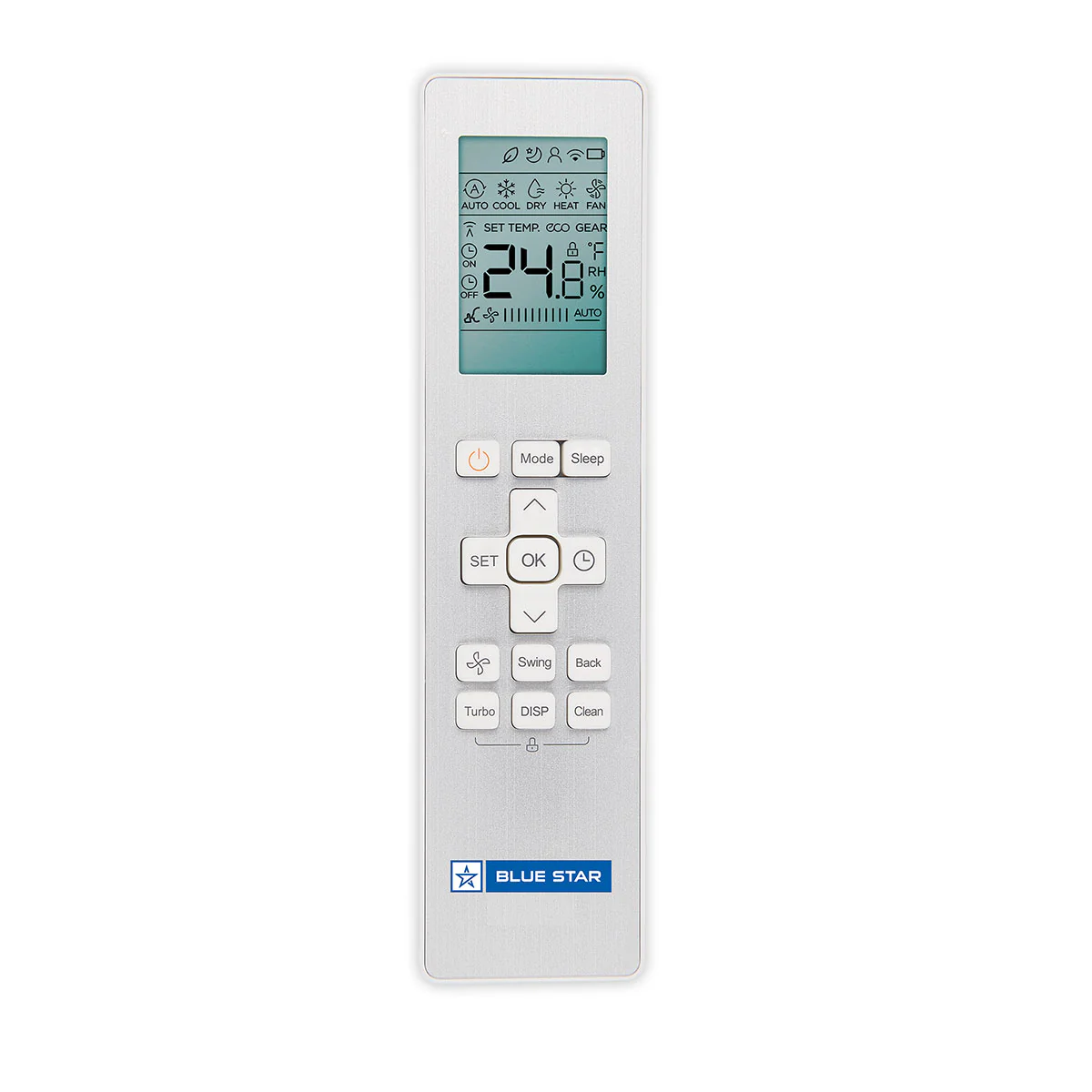

    Remote	LCD Remote with Display
    Night Glow Function on Remote Buttons	yes
    Net IDU Dimension (mm)	1259 x 282 x 362 (W x D x H)
    Input Power Supply	IDU
    Net Weight IDU (kg)	21.2
    Net ODU Dimensions (Width x Depth x Height) (mm)	968 x 367 x 689
    Net Weight ODU (kg)	48.5
    Noise Level Outdoor (dB)	65
    Gross IDU Weight (kg)	27
    Gross ODU Weight (kg)	54.1
    Suction Tube Size Outer Diameter Inch (mm)	5/8″ (15.88mm)
    Liquid Tube Size Outer Diameter Inch (mm)	3/8″ (9.52mm)
    Refrigerant Additional Charge Beyond 4M (g/m)	15
    Power Supply to ODU Source (Core/Gauge)	4C * 2.5 sqmm
    Power Supply to IDU Source (Core/Gauge)	3C * 2.5 sqmm
    Remote Battery Type	AAA
    Features Refrigerant	R32
    Features Condenser Type	100% Copper
    Included Components	1 each of Indoor Unit, Outdoor Unit, Copper tube (3 m), Inter Connecting wire (3.5 m), Remote, User Manual
