Blue Star Fixed Speed Cassette AC 3.0TR 1 Star FD136TANU3
MRP
₹103,999.00
Key Features
Payment Methods:
Description
|
Item Details |
|
|---|---|
|
Brand |
|
|
Model |
|
|
Capacity |
|
|
Star Rating |
|
|
Colour |
|
|
Item Dimensions WxDxH |
|
|
Item Weight |
|
|
Features Condenser Type |
|
|
Manufacturer |
|
|
Warranty |
|
Technical Specification |
|
|---|---|
|
Model Codes |
|
|
Nominal Capacity (Tr) |
|
|
Air Conditioner Type |
|
|
Star Rating – As Per BEE |
|
|
(Rated) Voltage / Frequency / Phase |
|
|
Cooling Capacity(Min~Max) (Watt) |
|
|
Cooling Capacity (Min~Max)BTU/Hr |
|
|
Cooling Rated Power Input (Min~Max)(Watt) |
|
|
ISEER |
|
|
Electricity Consumed In 1600 Hours. (Units/Year) |
|
|
Nominal Current (Cooling in Amps)/Running Current |
|
|
Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) |
|
|
Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) |
|
|
Moisture Removal (Litres/Hour) |
|
|
Compressor Type |
|
|
Compressor Warranty |
|
|
Eco Friendly Refrigerant |
|
|
Refrigerant Quantity (gms) |
|
|
Ambient Temp Range (Cooling)°C |
|
|
Remote |
|
|
IDU Net Dimension (W X H X D ) mm |
|
|
IDU Gross Dimension (W X H X D ) mm |
|
|
Input Power Supply |
|
|
Net Weight IDU (in Kg) |
|
|
Gross Weight IDU (in Kg) |
|
|
ODU Gross Dimension (W X H X D ) mm |
|
|
Net Weight ODU (in Kg) |
|
|
Gross Weigth ODU (in Kg) |
|
|
Noise Level Outdoor In dB(A) |
|
|
Power Supply to ODU Source(Core/Gauge) sqmm |
|
|
Power Supply to IDU Source(Core/Gauge) sqmm |
|
|
Cable from ODU to IDU(Communication Cable) m |
|
|
Suction Tube Size Outer Diameter Inch ( mm) |
|
|
Liquid Tube Size Outer Diameter Inch ( mm) |
|
|
Max Piping Capability Total (metre) |
|
|
Max Piping Capability Vertical (metre) |
|
|
Refrigerant Additional Charge Beyond 5M (g/m) |
Key Features :
-
- Turbo Cool-Pre-set mode to instantly cool the room during extreme summers.
- iFeel-Ensure the desired comfort around you, with our in-built sensor in the remote.

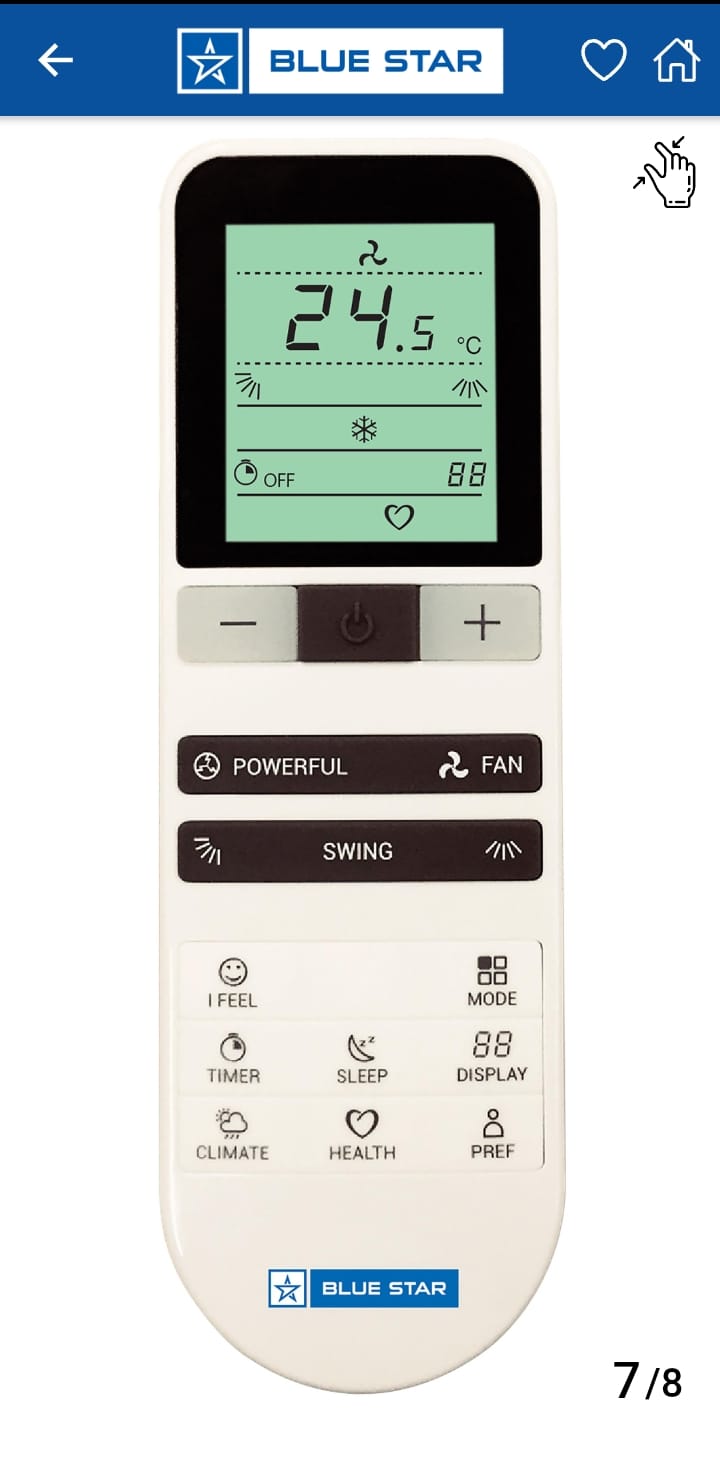

- LCD Display-Provide convenience to view the set temperature and mode in the remote
- R32 Eco Friendly Refrigerant-Environmental friendly refrigerant with very “Low Global Warming Potential)(GWP), delivers excellent cooling performance and are energy efficient.
- Comfort Sleep-Intelligently senses variation in indoor temperature and adjusts the same automatically, to keep you comfortable through the night.
- Wide Angle Powerful Air Flow-Ensure comfortable air flow across the room
- 100% Copper-Blue Star air conditioners’ condenser coil, evaporator coil and connecting tubes are made of 100% copper, thereby ensuring reliable cooling performance, and longer durability.
- Self Diagnosis-Alert the user of any fault in the AC operation immediately, through error display; You can report to Blue Star authorised customer care center for quick resolution.
- Self-Clean Technology-The Self-Clean Technology in Blue Star Air-conditioners prohibits the accumulation of any kind of moisture, mold or dust within the indoor unit. Each time the AC is turned off, the air conditioners run for an additional few minutes to ensure the coil in the indoor unit is completely dry and clean. The next time the AC is switched on, one can enjoy clean and fresh Air.
-
Item Details
Brand BLUE STAR Model FD136TANU3 Capacity 3.0 Ton Star Rating 1 Star Colour White Item Dimensions WxDxH 838*206*838 mm (IDU) /910*236*910mm (ODU) Item Weight 25Kg (IDU) /30 Kg (ODU) Features Condenser Type 100% Copper Manufacturer BLUE STAR LTD. Warranty 1 Years on Product, 1 Year on Compressor.
Technical Specifications
Model Codes FD136TANU3 Nominal Capacity (Tr) 3.0 Tr Air Conditioner Type Fixed Speed Cassette Star Rating – As Per BEE 1 Star (Rated) Voltage / Frequency / Phase 415V / 5OHz / 3Ph Cooling Capacity(Min~Max) (Watt) 10550 Cooling Capacity (Min~Max)BTU/Hr 36000.0 Cooling Rated Power Input (Min~Max)(Watt) 3700 ISEER 2.85 Electricity Consumed In 1600 Hours. (Units/Year) 2864.2 Nominal Current (Cooling in Amps)/Running Current 5.68 Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) 1223/1098/973 Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) 58.9/56.4/54.3 Moisture Removal (Litres/Hour) 2.6 Compressor Type Rotary Compressor Warranty 1 Years Eco Friendly Refrigerant R-32 Refrigerant Quantity (gms) 1220 Ambient Temp Range (Cooling)°C 21°C to 52°C Remote LCD Remote with Display IDU Net Dimension (W X H X D ) mm 838*206*838 IDU Gross Dimension (W X H X D ) mm 910*236*910 Input Power Supply Outdoor Net Weight IDU (in Kg 25 Gross Weight IDU (in Kg) 30 ODU Net Dimension (W X H X D ) mm 1001*809*409 ODU Gross Dimension (W X H X D ) mm 1040*825*490 Net Weight ODU (in Kg) 55 Gross Weigth ODU (in Kg) 59 Noise Level Outdoor In dB(A) 61 Power Supply to ODU Source(Core/Gauge) sqmm 2.5sqmm Power Supply to IDU Source(Core/Gauge) sqmm NA Cable from ODU to IDU(Communication Cable) m 2.5sqmm Suction Tube Size Outer Diameter Inch ( mm) 5/8″ (15.87mm) Liquid Tube Size Outer Diameter Inch ( mm) 3/8″(9.525mm) Max Piping Capability Total (metre) 30 Max Piping Capability Vertical (metre) 15 Refrigerant Additional Charge Beyond 5M (g/m) 24gm
