BLUE STAR FIXED SPEED AC | D SERIES | 2 TON | 3 STAR FB324DNU
MRP
₹45,999.00
Key Features
Payment Methods:
Description
|
Item Details |
|
|---|---|
|
Brand |
|
|
Model |
|
|
Capacity |
|
|
Star Rating |
|
|
Colour |
|
|
Item Dimensions WxDxH |
|
|
Item Weight |
|
|
Features Condenser Type |
|
|
Manufacturer |
|
|
Warranty |
|
Technical Specification |
|
|---|---|
|
Model Codes |
|
|
Nominal Capacity (Tr) |
|
|
Air Conditioner Type |
|
|
Star Rating – As Per BEE |
|
|
(Rated) Voltage / Frequency / Phase |
|
|
Cooling Capacity(Min~Max) (Watt) |
|
|
Cooling Capacity (Min~Max)BTU/Hr |
|
|
Cooling Rated Power Input (Min~Max)(Watt) |
|
|
ISEER |
|
|
Electricity Consumed In 1600 Hours. (Units/Year) |
|
|
Nominal Current (Cooling in Amps)/Running Current |
|
|
Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) |
|
|
Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) |
|
|
Moisture Removal (Litres/Hour) |
|
|
Compressor Type |
|
|
Compressor Warranty |
|
|
Eco Friendly Refrigerant |
|
|
Refrigerant Quantity (gms) |
|
|
Ambient Temp Range (Cooling)°C |
|
|
Remote |
|
|
IDU Net Dimension (W X H X D ) mm |
|
|
IDU Gross Dimension (W X H X D ) mm |
|
|
Input Power Supply |
|
|
Net Weight IDU (in Kg) |
|
|
Gross Weight IDU (in Kg) |
|
|
ODU Gross Dimension (W X H X D ) mm |
|
|
Net Weight ODU (in Kg) |
|
|
Gross Weigth ODU (in Kg) |
|
|
Noise Level Outdoor In dB(A) |
|
|
Power Supply to ODU Source(Core/Gauge) sqmm |
|
|
Power Supply to IDU Source(Core/Gauge) sqmm |
|
|
Cable from ODU to IDU(Communication Cable) m |
|
|
Suction Tube Size Outer Diameter Inch ( mm) |
|
|
Liquid Tube Size Outer Diameter Inch ( mm) |
|
|
Max Piping Capability Total (metre) |
|
|
Max Piping Capability Vertical (metre) |
|
|
Refrigerant Additional Charge Beyond 5M (g/m) |
Key Features
-
- High Cooling Performance-Designed to deliver powerful cooling during extreme summers with minimum derating.
- Turbo Cool-Pre-set mode to instantly cool the room during extreme summers.
- Energy Saver-The Eco mode helps save on your electricity bills, while giving you a comfortable cooling experience.
- Comfort Sleep-Intelligently adjusts the AC’s operation providing the right cooling comfort and ensuring comfortable sleep.
- Hidden Display-Ensures uninterrupted sleep during the night by turning OFF the LED display in the indoor unit.
- 100% Copper-Blue Star AC’s condenser coil, evaporator coil, and connecting tubes are made of 100% copper, thereby ensuring reliable cooling performance and enhanced durability.
- Anti Corrosive Blue Fins for Protection-Protects the coils from corrosion and leakage due to harsh climate, rainwater, salty air, and humidity. Enhance the efficiency and long life of the AC.
- Self Diagnosis-Alerts the user to any fault in the AC’s operation, with an error code, which helps in faster resolution.

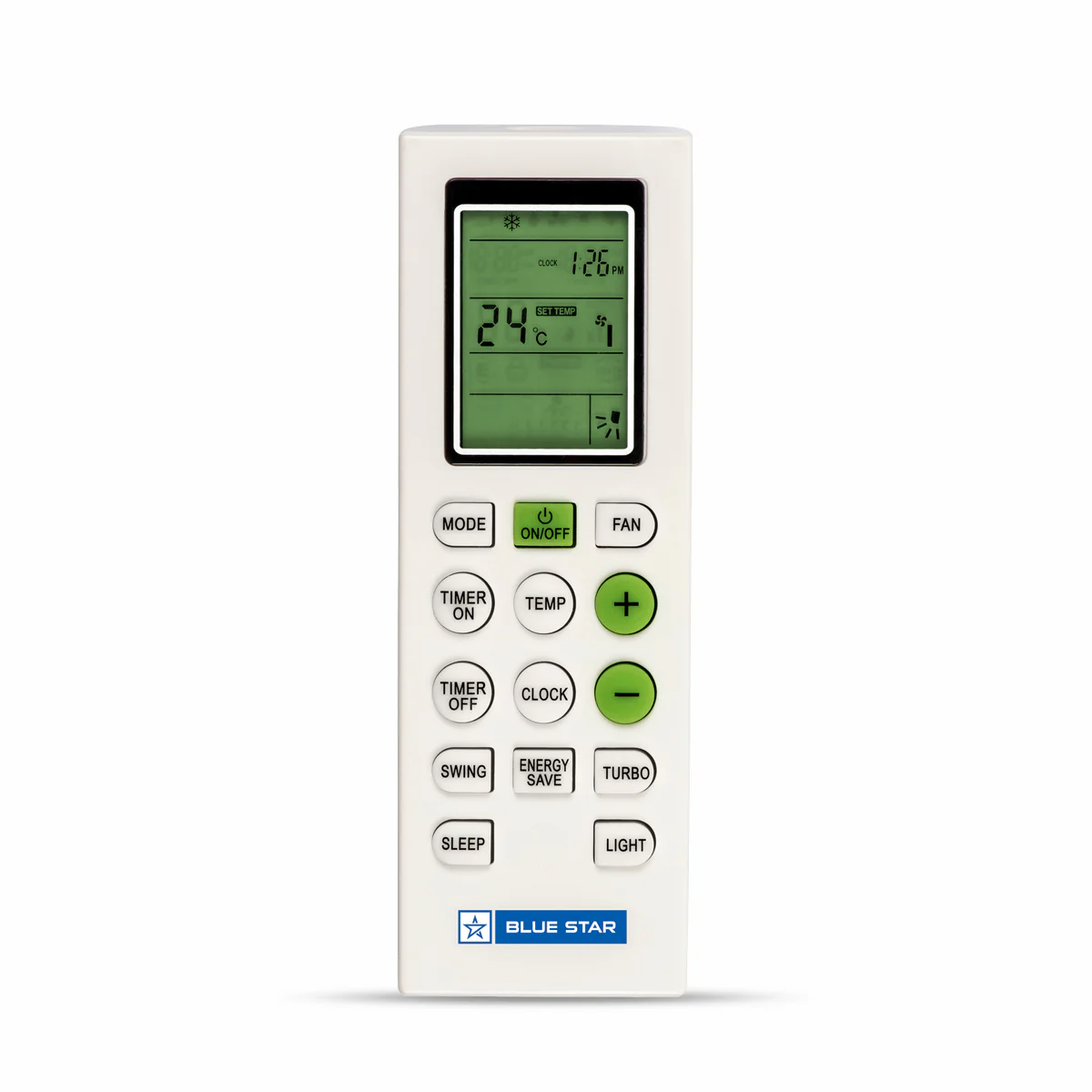

- Elegant Remote-Ergonomically designed easy-to-operate remote to control your AC features.
-
Item Details
Brand BLUE STAR Model FB324DNU- Fixed Speed Split AC 2.0 Tr 3 Star Capacity 2.0 Ton Star Rating 3 Star Colour White Item Dimensions WxDxH 1110 x 215 x 335 (IDU) / 968 x 367 x 689 mm (ODU) Item Weight 13.5Kg (IDU) / 45.2 Kg (ODU) Manufacturer BLUE STAR LTD. Warranty 1 Years on Product, 5 Years on Compressor.
Technical Specifications
Details Product Title FB324DNU- Fixed Speed Split AC 2.0 Tr 3 Star Star Rating 3 star Cooling Capacity (Watt)(Min~Max) 6250 (Rated) Voltage/ Frequency/ Phase 230 V / 50Hz / Single ISEER 3.87 Address of Manufacturer BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 Country of Origin India Air Conditioner Technology Fixed Speed Cooling Capacity (BTU/hr) 21313 Cooling Rated Power Input (Watt) 1615 Cooling Capacity (BTU/hr) (Min~Max) 21313 Electricity Consumed in 1600 Hours (Units/Year) 1250 Nominal Current (Cooling) (Amps) 7.39 Air Flow Volume (Wet CFM) (High/Medium/Low) 815/555/485/375 Noise Level Indoor (dB) (High/Medium/Low) 47/45/43 Moisture Removal (Litres/Hour) 2.01 Compressor Type Rotary Refrigerant Quantity (kg) 1.2 Ambient Temp (Cooling) (degree C) 52 Remote LCD Remote with Display Night Glow Function on Remote Buttons yes Net IDU Dimension (mm) 1110 x 215 x 335 (W x D x H) Input Power Supply IDU Net Weight IDU (kg) 13.5 Net ODU Dimensions (Width x Depth x Height) (mm) 968 x 367 x 689 Net Weight ODU (kg) 45.2 Noise Level Outdoor (dB) 65 Gross IDU Weight (kg) 16.8 Gross ODU Weight (kg) 50.2 Suction Tube Size Outer Diameter Inch (mm) 5/8” (15.87mm) Liquid Tube Size Outer Diameter Inch (mm) 1/4” (6.35mm) Refrigerant Additional Charge Beyond 4M (g/m) 15 Power Supply to ODU Source (Core/Gauge) 4C * 2.5 sqmm Power Supply to IDU Source (Core/Gauge) 3C * 2.5 sqmm Remote Battery Type AAA Features Refrigerant R32 Features Condenser Type 100% Copper Included Components 1 each of Indoor Unit, Outdoor Unit, Copper tube (3 m), Inter Connecting wire (3.5 m), Remote, User Manual
